SPE-760A
High speed Plastic Cup Making Machine

Description

Plastic cup thermoforming machine is used to produce disposable drinking cups, ice cream cups, disposable yogurt cups/bowls, lids, plates, plates, etc. The SPE-760A Plastic Cup Machine is an ideal choice for customers who want an affordable price. The entire machine is equipped with one servo motor located on the lower mold stage drive. Compared to other models of plastic cup thermoforming machines, this model uses cylinder stretching for stretching and ordinary motors for sheet feeding.

Inquire Now
Compare

Watch The Video

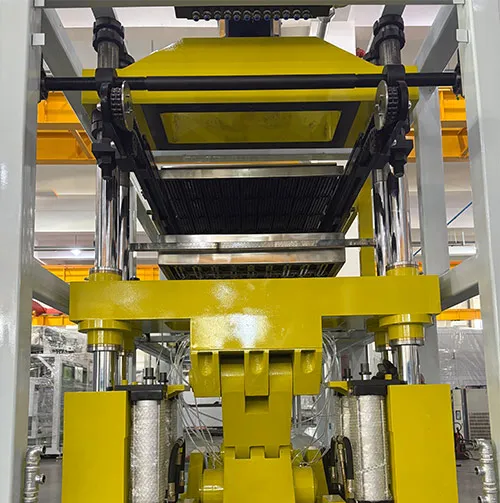

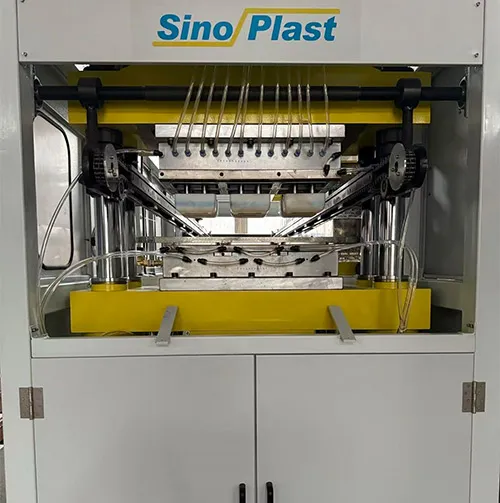

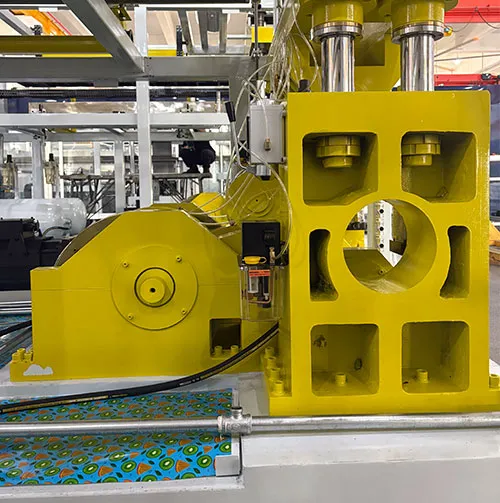

SPE-760A Plastic Cup Machine
SPE-760A Plastic Cup Machine
SPE-760A Plastic Cup Machine
SPE-760A Plastic Cup Machine
SPE-760A Plastic Cup Machine
SPE-760A Plastic Cup Machine
Max.Forming Area 760*320MM
Suitable Material PP/PS/PET
Max.Forming Depth 160MM (Can special design)
Lower Mold Movement Servomotor
Sheet Feeding Method Ordinary motor
Plug Stretching Method Air Cylinder

Features

Main Technical Parameters

Application

Auxiliary Equipment

Our Markets
Features

Plastic cup thermoforming machine is used to produce disposable drinking cups, ice cream cups, disposable yogurt cups/bowls, lids, plates, plates, etc. The SPE-760A Plastic Cup Machine is an ideal choice for customers who want an affordable price. The entire machine is equipped with one servo motor located on the lower mold stage drive. Compared to other models of plastic cup thermoforming machines, this model uses cylinder stretching for stretching and ordinary motors for sheet feeding.



The maximum molding layout of this model is 760 * 320mm, and it adopts an eccentric wheel drive structure to ensure the stability of the machine during long-term production processes. The plastic cup thermoforming machine is suitable for producing materials such as PP/PS/PET, and customers can produce different products by changing different molds.

Main Technical Parameter

Model

SPE-760B

SPE-760D

SPS-760E

Max.Forming Area

760*320MM

760*450MM

760*540MM

Max.Forming Depth

160MM(Can special design)

Example

Cup Top Dia.=75mm,24cavities/mold

Cup Top Dia.=75mm,32-40cavities/mold

Running Speed

15-32cycles/min(according to sheet thickness,material used and product shape )

Sheet Thickness

0.20-2.5MM

Suitable Material

PP/PS/PET

Lower Mold Movement

14.1KW Servomotor

20.4KW Servomotor

Temperature Control Method

Temperature Controller and Temperature Control Module

Air Consumption

1.3-1.6m3/min, 0.6-0.8Mpa

Sheet Feeding Method

4.4KW Servomotor

Plug Stretching Method

5.5KW Servomotor

7.5KW Servomotor

Approx.Weight

8000KG

9000KG

10000KG
Application
Auxiliary Equipment

Gas Storage Tanks

Cold water machine

Air Compressor

Online Crusher

Comparision
WHY CHOOSE US?
CATEGORY
Sinoplast
Others
1. Stretching
Sinoplast：use servo motor stretching to ensure the quality of the product, as well as more convenient adjustment
Other manufacturers：use cylinder stretching, not easy to adjust
2. Heating element
Sinoplast：We use ELSTEIN heating elements imported from Germany to reduce electricity costs during production
Other manufacturers：Use common brand heating elements
3. Mold quality
Sinoplast：Use good quality materials to produce molds
other manufacturers：The mold is rough and the material used is poor
